Black Popular GPON OLT 8*GPON Ports 1540~1563nm Wavelength Economic
Product instruction
The BHT2108 OLT (Figure 1) is self-developed Compact 1U GPON OLT equipment,meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/Unicom GPON, possessing super GPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode. BHT2108 can be used with NMS3000 network management system so as to provide users with the perfect solution.
Key Feature Support on BHT2108
| Ethernet switching (L2) features | |
| VLAN | 4K VLAN entries |
| Port-based QinQ and Selective QinQ (StackVLAN) | |
| Port-based/MAC-based/IP subnet-based VLA | |
| Spanning tree | IEEE 802.1x STP/RSTP/MSTP |
| ONU remote loop detection | |
| MAC | MAC Black Hole |
| Port MAC limit | |
| 64K MAC address | |
| Port | Bi-direction bandwidth control |
| Port mirroring and traffic mirroring | |
| Service features | |
| Multicast | IGMPv1/v2/v3 |
| IGMP Snooping/Proxy | |
| IGMP filtering | |
| QoS | Base on port or user-defined rate limitation |
| Base on port or user-defined priority tag, provide 802.1P, DSCP tag ability of priority | |
| Base on port or user-defined high grade queue scheduling | |
| Priority queues and scheduler of SP, WRR and SP+WRR. | |
| Congestion avoidance system | |
| Security features | |
| User security | Anti-ARP-spoofing deceive defend |
| Anti-ARP-flooding flooding attack automatic control | |
| IP,MAC,port and VLAN binding | |
| Port isolation | |
| Network security | IP address,VLAN ID,MAC address and port manual binding |
| Port broadcast /multibroadcast restrain | |
| Base on source / destination MAC address,VLAN,802.1p,ToS,DiffServ,source/ destination IP(IPv4/IPv6) address,TCP/UDP port number protocol type of IP package flow classify and flow defined regulation management,support package header 80 byte depth L2-L7 ACLflow filtrate | |
| Dynamic ARP table-based binding | |
| DHCP Option82 and PPPoE+ upload user’s physical location | |
| Network management | Command-line interface(CLI), Console, Telnet and WEB configuration |
| RMON (Remote Monitoring)1/2/3/9 groups of MIB | |
| System configuration with SNMPv1/v2/v3 | |
| NTP(Network Time Protocol) | |
| NMS2000 network management | |

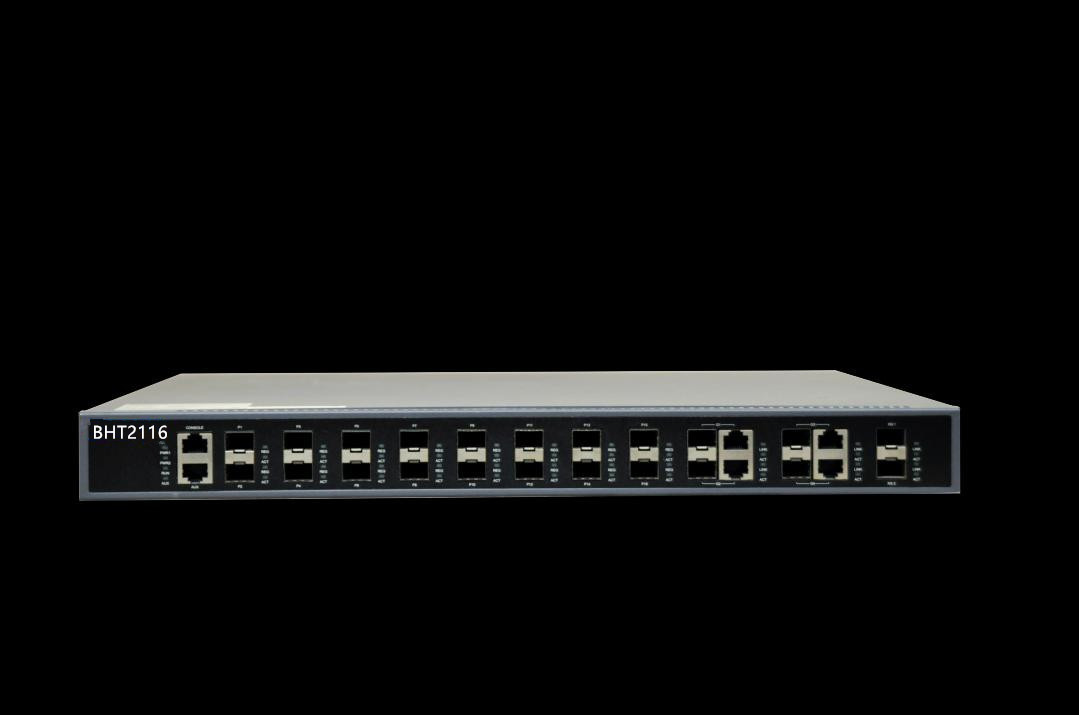

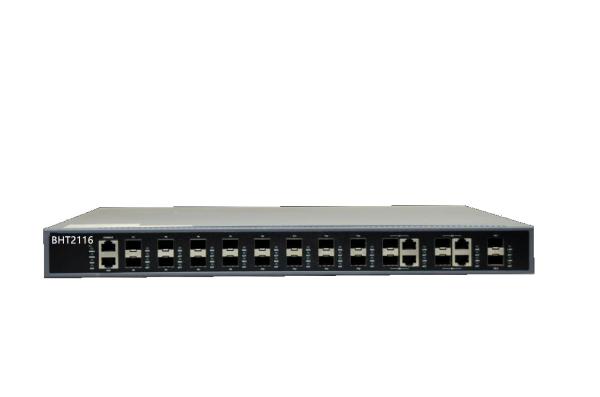

Product show
