Outdoor Optical receiver 2 way output:
BOR1000BW
| Features | Unit | Parameters | |
| Optical Features | |||
| Input Frequency | dBm | -9 ~ +2 | |
| Optical AGC range | dBm | +2 ～ -9/-8/-7(Adjustable) | |
| Return Loss | dB | >45 | |
| Input Wavelength | nm | 1100 ~ 1600 | |
| Optical Ports | SC/APC OR customized | ||
| Fiber Type | Signal | ||
| Link Features | |||
| C/N | dB | ≥ 51 | EQ8dB Output Level 108 dBμV (FZ110) |
| C/CTB | dB | ≥ 67 | |
| C/CSO | dB | ≥ 62 | |
| RF Features | |||
| RF Range | 45 ~862/1003 | ||
| Flatness | dB | ±0.75 | |
| Nominal Output Level | dBμV | ≥ 108 | |
| Max. Output Level | dBμV | ≥ 112( when input frequency-9 ~ +2dBm) | |
| ≥ 116(when input frequency -7 ~ +2dBm) | |||
| Output Return Loss | dB | ≥16 | |
| Output Impedance | Ω | 75 | |
| Electronic Control Equalization Range | dB | 0～15 | |
| Electric Control Attenuation Range | dB | 0～15 | |
| General Features | |||
| Power Voltage | MHz | A: AC(150~265)V B: AC (35~90) V | |
| Working Temperature | ℃ | -40~60 | |
| Power Waste | VA | ≤14 | |
| Size | mm | 220(L)* 205(W)* 65(H) | |
Principle Diagram:

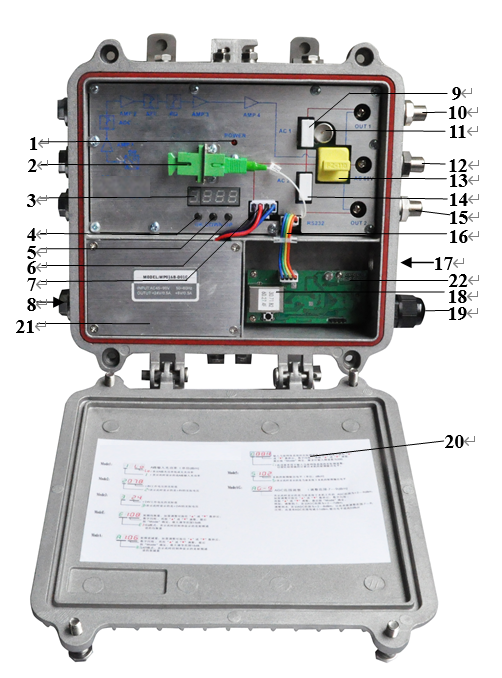

Structure Instruction
| 1. Working Light | 2. Optical Input Port External Knob as Option) |
| 3. LED Digital Display | 4. “OK” |
| 5. Downpage | 6. Uppage |
| 7. Power Port | 8. AC220V Input Port(When AC220V) |
| 9. AC60V Overcurrent Power | 10. OUT1 |
| 11. -20dB Testing Port | 12. AC60V Feeder Port |
| 13. FZ110 OR FP204 | 14. AC60VOvercurrent Port |
| 15. OUT 2 | 16. Transponder Connection Wire |
| 17. Optical Fiber Port | 18. RJ45 (External Knob as option) |
| 19. Network Cable | 20. Manual |
| 21. Power Switch | 22. Transponder |
|
|
