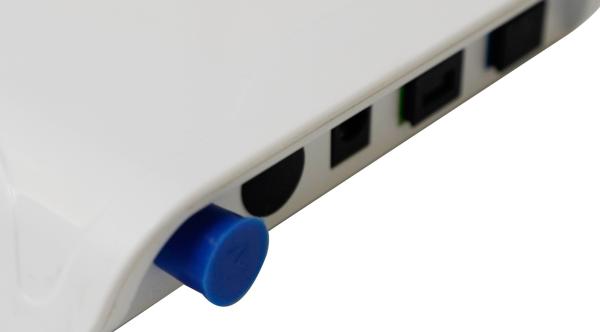

    76dBuV White PP WDM FTTH Optical Receiver 1000MHz 1G 1310nm 1490nm 1550nm

    Ask Lasest Price
    Brand Name : BEHOME
    Model Number : BOR1000BN
    Payment Terms : T/T, L/C
    Supply Ability : 5000PCS PER MONTH
    Delivery Time : 1 month if no any stock
    Certification : ISO14001 ISO2000 ISO45001
    Price : Negotiable
    • Product Details
    • Company Profile

    76dBuV White PP WDM FTTH Optical Receiver 1000MHz 1G 1310nm 1490nm 1550nm

    Mini Popular Optical Receiver D21 White with WDM(Top Sales NO.1)


    BEHOME is specialized in CATV for nearly 30 years and focus on CATV solution


    Using high-quality photoelectric conversion adapter, and low noise MMIC amplifier chip, the circuit design is excellent, excellent nonlinear distortion characteristics. Easy maintenance, craft beautiful, high performance price ratio. It has the following characteristics:


    RF
    Frequency (MHz)47-1000
    Flatness (dB)± 1.5
    Output power (dBuV)> 72@-12dBm opitcal receiver power
    Power In (V)12 DC
    Return Loss (dB)312
    Consumption (W)W3
    Temperature (°C)0~50
    Humidity0-90%
    Dimension (mm)123X93X27
    RF typeF-5(female)
    Link performance
    CTB (dB)>60@・10dBm
    CSO (dB)360@・10dBm
    CNR (dB)N40@・10dBm
