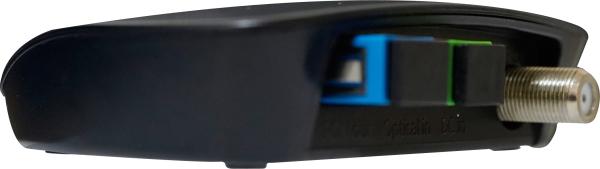

Mini FTTH Cheapest Optical Receiver A21 without WDM

If you wanna buy a cheapest receiver but functional, this is your best choice.

Optical Feature

Wavelength(nm) 1310/1550

Input Power Frequency(dBm) -15~0

AGC Range (dBm) -12~-1

AGC Control Precision (dB) ±2

Return Loss (dB) ≥45

Fiber Connector SC/APC

RF Features

Working Wideband(MHz) 47~1000

Flatness(dB) ± 1.5

Output Level(dBuV) 76±2

Output Return Loss(dB) ≥13

Output Impedance(Ω) 75

RF ports Q’ty 1

RF Connector F-5(Metric) Imperial as option

Other Features

Power Supply(V) 110-240 AC@50/60Hz

Output Voltage(V) 12 DC

Powe Consumption(W) ≤3

Working Temperature(℃) 0 ~ 50

Working Moisture 0 ~ 90% Non-Condensing

Size(mm) 123×93×27
