FTTH Economic OEM Direct Optical Transmitter 8W(9dB) BOT1550-9
product character
This transmitter is a high-index, multi-functional 1550nm internally modulated optical transmitter in top level. It adopts high linear DFB laser, with built-in pre-distortion compensation and AGC, APC, ATC control, which greatly improves the comprehensive index of the system.
OLT series is usde for the front end of FTTH network. Direct optical transmitter 8W(9dB) is the most popular Type in this series.
PARAMETERS:
| Category | Items | Unit | Index | Remarks | ||||
| Min. | Typ. | Max. | ||||||
| Optical Index | Operating Wavelength Range | nm | 1528.77 | 1563.86 | Compatible with ITU wavelength | |||
| No. of Output Ports | 1 | 2 | ||||||
| Output Power per Port | dBm | 3 | 10 | 1dBm interval | ||||
| Laser Linewidth | MHz | 0.65 | 1.0 | |||||
| SMSR | dB | 45 | 50 | |||||
| XP | dB | 20 | ||||||
| RIN | dB/Hz | -160 | RIN(20~1002MHz) | |||||
| Optical Return Loss | dB | 50 | ||||||
| Fiber Connector | SC/APC | FC/APC,LC/APC | ||||||
| RF Index | Operating Bandwidth | MHz | 47 | 1002 | ||||
| Input Level | dBμV | 75 | 80 | 85 | AGC | |||
| Flatness | dB | -0.75 | +0.75 | 47~1002MHz | ||||
| Return Loss | dB | 16 | 47~1002MHz | |||||
| Input Impedance | Ω | 75 | ||||||
| RF connector | F Metric/Imperial | Specified by user | ||||||
| General Index | Network Management Interface | SNMP,WEB supported | ||||||
| Power Supply | V | 90 | 265 | AC | ||||
| -72 | -36 | DC | ||||||
| Power Consumption | W | 30 | Dual Power Supply, 1+1 standby | |||||
| Operating Temp | ℃ | -5 | +65 | Auto case temp control | ||||
| Storage Temp | ℃ | -40 | +85 | |||||
| Operating Relative Humidity | % | 5 | 95 | |||||
| Dimension | mm | 370×483×44 | D,W,H | |||||
| Weight | Kg | 4.1 | ||||||
Diagram of the product

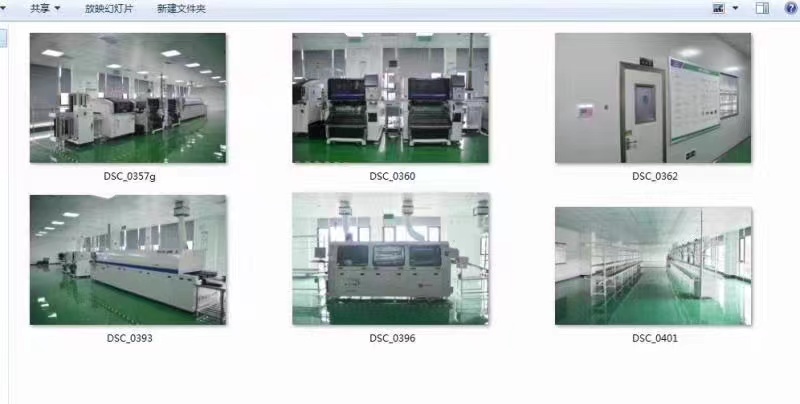

Our company information
1. SICHUAN BIHONG ELECTRONIC INFORMATION TECHNOLOGY CO.,LTD was
established in 1992. With nearly 30 years of development, it has
become a technology company including R & D of integrating
information network technology product, relevant devices
manufacturing and system integration proposal design.
2.Our company is a high-tech enterprise whose technology center is
named "provincial enterprise technology center", "academician
expert workstation" and "Network system integration engineering
technology research center", with a number of independent
intellectual property rights. 3. In recent years, while being
specialized, refined and strong in radio and television
transmission field and emergency broadcasting field, the company
has fully started upgrading its own business to intelligent
community operations , including intelligent building, intelligent
school, intelligent areas and any intelligent services to be
customized design, complete proposal refers to technical
instructions, devices and sales service.
|
|
